Ligature- Resistant Raised Ventilation Grilles

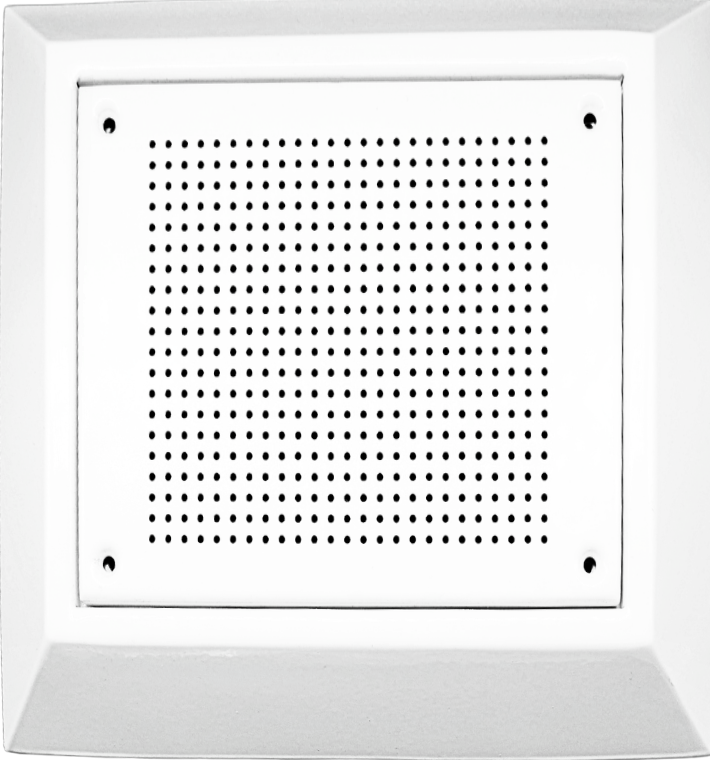

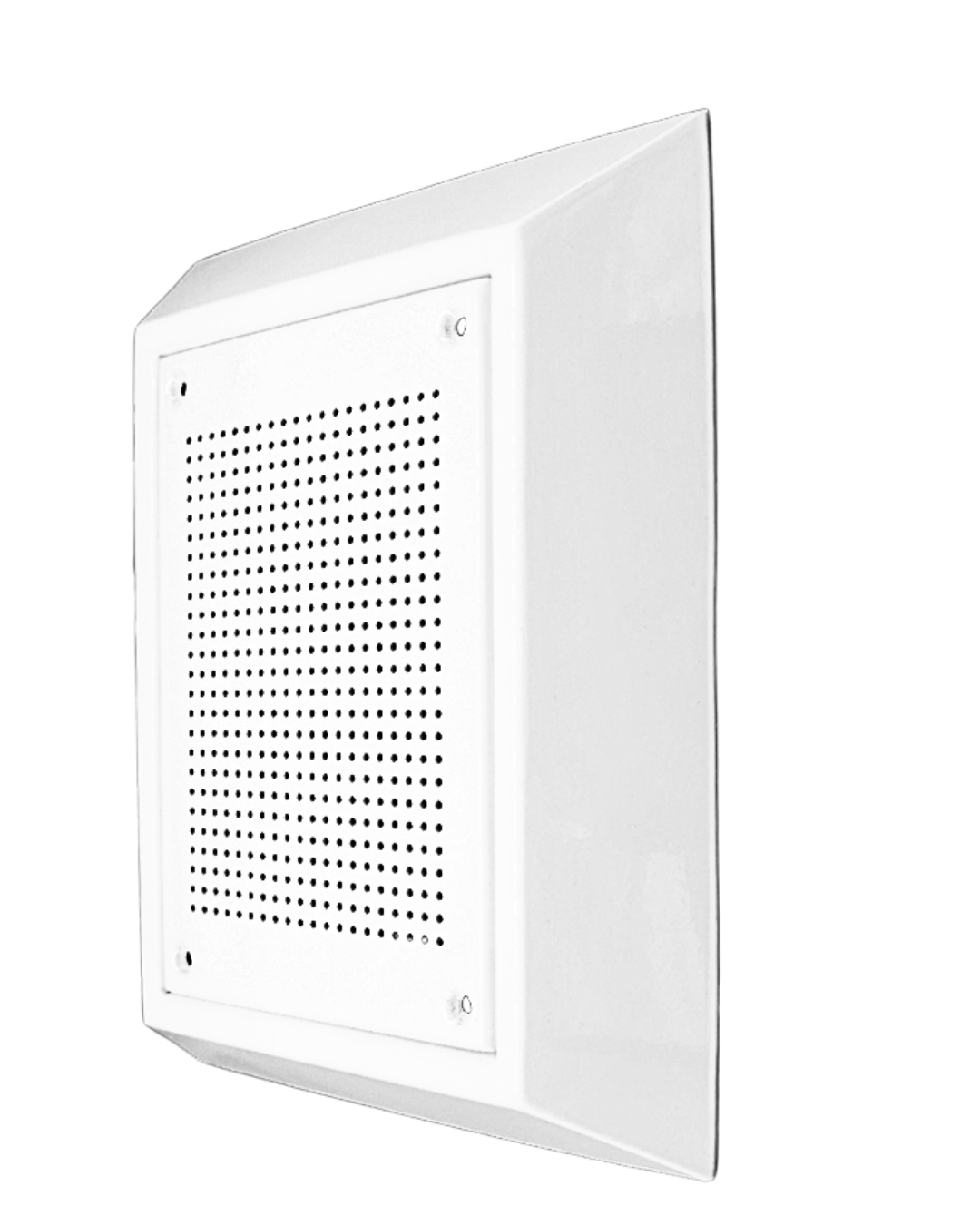

The ALSVFRSS Raised Ventilation Grille is a ligature-resistant stainless steel ventilation cover designed for wall or ceiling-mounted extractor fans in secure and mental health environments. Developed in collaboration with a high secure mental health site, it improves maintenance access while significantly reducing ligature risk compared to standard open grille designs.

Manufactured from 1.2mm 430 stainless steel and finished in anti-bacterial powder-coated RAL 9003 white, this grille provides a durable, hygienic and impact-resistant solution suitable for damp and wet environments.

Key Features

• Ligature-resistant raised frame design
• Designed for 4″, 6″, 9″ and 12″ extractor fans
• Manufactured in 1.2mm 430 stainless steel
• Anti-bacterial powder-coated finish, RAL 9003 white
• Hidden wall fixings with secure front access screws
• Tough, impact-resistant construction
• Designed for secure and mental health environments
• Custom sizes and colours available on request
• 1-year manufacturer’s defect warranty

Applications

Suitable for:

• Mental health units
• Psychiatric intensive care units
• Custodial environments
• Rehabilitation centres
• Secure healthcare settings
• Designed to reduce ligature risk from standard open ventilation grilles while maintaining airflow performance.

Installation & Maintenance

The outer frame is fixed directly to the wall or ceiling via integrated fixing holes using 4x appropriate substrate fixings, not included. The perimeter should be sealed using Anti-Pick 110, purchased separately. The internal grille is inserted into the frame and secured using security screws, allowing controlled maintenance access when required.

Clean the outer frame using a damp microfibre cloth and non-detergent cleaner. The inner grille can be removed and washed in warm soapy water to remove debris from the 2mm perforations.
